Schneider Electric BDA24070Y2 PowerpacT B-Frame Circuit Breaker

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

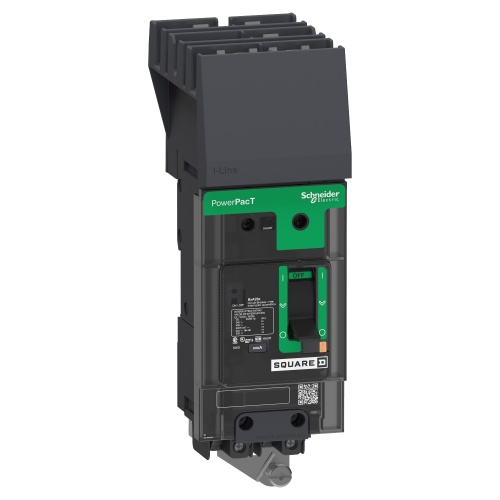

Schneider Electric BDA24070Y2 PowerpacT B-Frame Circuit Breaker

Normally In Stock

Code: 92249

Schneider BDA24070Y2 Circuit breaker 70 A 2P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480/277 V AC 50/60 Hz UL 489, 18 kA 480 V AC 50/60 Hz UL 489, 10 kA 600Y/347 V AC 50/60 Hz UL 489, 250 V DC UL 489 AC 80 % I-Line Distribution BD 070 UL, IEC, C

Condition: New

CALL FOR LEAD TIME

$1189.82

Sale Price

$991.52

Tariff Status

Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.

Need a large quantity or a custom solution?

Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

Add to Job Add to Favorites Add to Quote

Description

The PowerPacT B-Frame circuit breaker offers compact thermal-mechanical protection with a wide range of accessories and options, providing 18kA breaking capacity at 480Y/277VAC, dual-break rotating contacts to reduce peak current during short circuits, and an integral push-to-trip button for manual tripping, available in 1-4 pole units and I-Line constructions with shrouded plugs and CE marking.

Specifications

Poles (Molded Case Breaker)

Two Pole

Interrupt Code (Molded Case Breaker)

D Interrupt Rating

Amperage (Molded Case Breaker)

70 Amp

Frame Type (Molded Case Breaker)

B Frame

UL Listing (Molded Case Breaker)

UL 489

Maximum Voltage (Molded Case Breaker)

525 VAC

Mounting (Molded Case Breaker)

I-Line

Manufacturer

Schneider Electric

Manufacturer

Square D

Component

Molded Case Circuit Breaker
