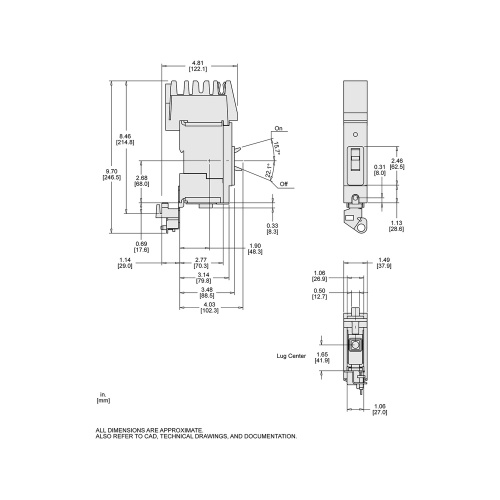

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

Schneider Electric BDA140801 PowerPacT B-Frame Circuit Breaker

Normally In Stock

Code: 92267

Schneider BDA140801 Circuit breaker 80 A 1P 25 kA 208Y/120 V AC 50/60 Hz UL 489, 25 kA 240 V AC 50/60 Hz UL 489, 18 kA 480Y/277 V AC 50/60 Hz UL 489, 14 kA 125 V DC 50/60 Hz UL 489, 10 kA 600/347 V AC 50/60 Hz UL 489 A 80 % I-Line Distribution BD 080 UL, IEC, CCC, EAC, CSA, NOM S

Condition: New

CALL FOR LEAD TIME

$771.89

Sale Price

$643.24

Tariff Status

Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.

Need a large quantity or a custom solution?

Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

Add to Job Add to Favorites Add to Quote

Description

The PowerPacT B-Frame circuit breaker offers compact thermal-mechanical protection with various accessories and connection options, featuring dual-break rotating contacts for reduced peak current during short circuits, a push-to-trip button, and units available in 1 to 4-pole construction or I-Line design, meeting standards such as UL, CSA, NOM, and IEC while being CE marked.

Specifications

Interrupt Code (Molded Case Breaker)

D Interrupt Rating

Amperage (Molded Case Breaker)

80 Amp

Frame Type (Molded Case Breaker)

B Frame

Poles (Molded Case Breaker)

Single Pole

UL Listing (Molded Case Breaker)

UL 489

Mounting (Molded Case Breaker)

I-Line

Maximum Voltage (Molded Case Breaker)

240 VAC

Manufacturer

Schneider Electric

Manufacturer

Square D

Component

Molded Case Circuit Breaker
