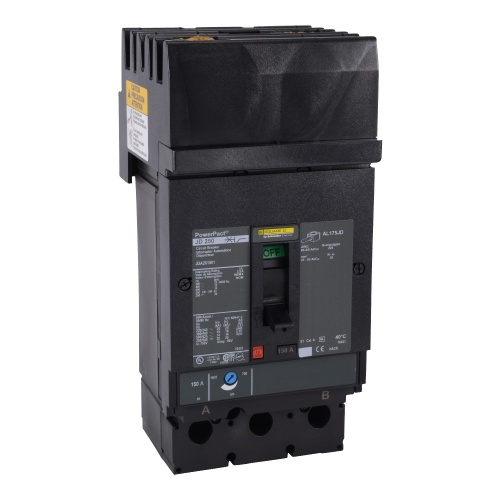

Schneider Electric JDA262502 PowerPacT J-Frame Circuit Breaker Benefits
Normally In Stock
Code: 93691

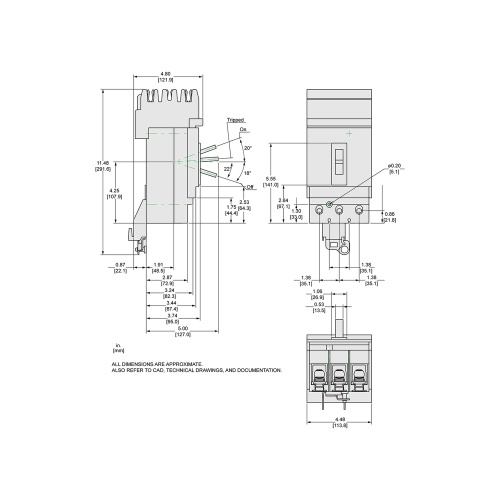

Schneider JDA262502 Circuit breaker 250 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC AC 80 % 2P I-Line CCC, IEC, UL Listed, CSA, CE PowerPact J D Thermal-magnetic 1250 A 2500 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 2 600 V AC,
Condition: New
CALL FOR LEAD TIME$3015.34
Sale Price
$2512.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT J-Frame circuit breakers offer thermal magnetic or electronic trip protection units and provide protection against overloads and short circuits, featuring dual-break rotating contacts that reduce peak current during faults and an integral push-to-trip button for manual tripping, available in 2 and 3-pole unit mount and I-Line constructions with compliance to UL, CSA, NOM, and IEC standards.
Specifications
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Frame Type (Molded Case Breaker)
J Frame
Amperage (Molded Case Breaker)
250 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
18 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
14 kA 600 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
