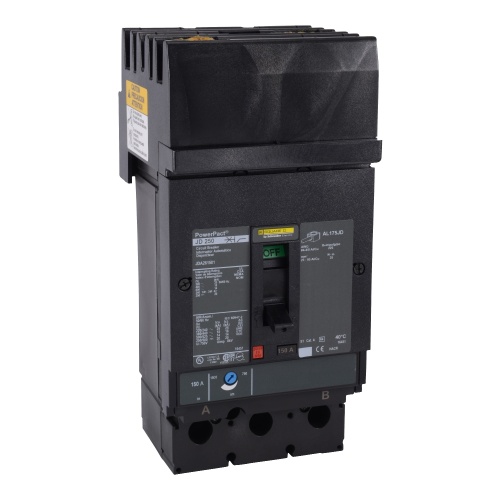

Schneider Electric JDA262504 PowerPacT J-Frame Circuit Breaker
Normally In Stock
Code: 93693

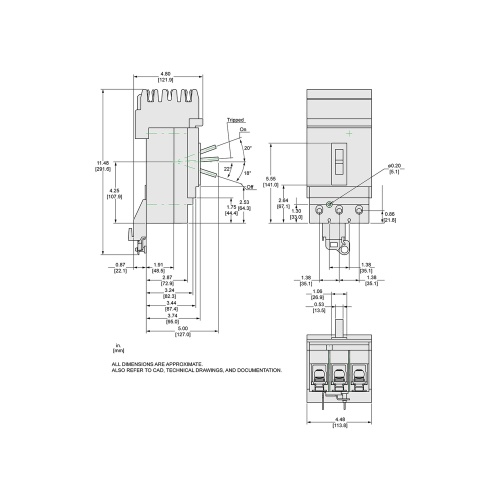

Schneider JDA262504 Circuit breaker 250 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC BC 80 % 2P I-Line UL Listed, IEC, CE, CSA, CCC PowerPact J D Thermal-magnetic 1250 A 2500 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 2 600 V AC,
Condition: New
CALL FOR LEAD TIME$6784.46
Sale Price
$5653.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT J-Frame circuit breakers offer thermal magnetic or MicroLogic electronic trip protection units to safeguard electrical systems against overloads and short circuits, featuring dual-break rotating contacts that minimize peak current during faults and a push-to-trip button for manual tripping, with various pole configurations available in I-Line constructions and meeting UL, CSA, NOM, and IEC standards.
Specifications
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Frame Type (Molded Case Breaker)
J Frame
Amperage (Molded Case Breaker)
250 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
18 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
14 kA 600 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
