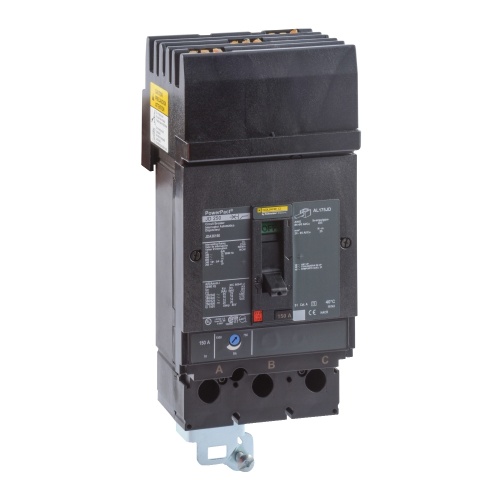

Schneider Electric JDA36150 PowerPacT J-Frame Circuit Breakers
Normally In Stock
Code: 93696

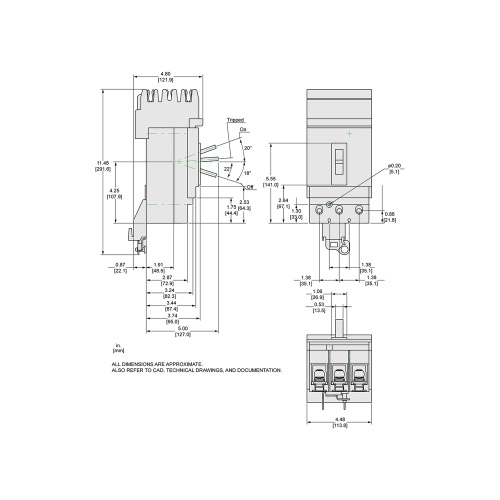

Schneider JDA36150 Circuit breaker 150 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC ABC 80 % 3P I-Line IEC, CE, CCC, UL Listed, CSA PowerPact J D Thermal-magnetic 750 A 1500 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 3 600 V AC,
Condition: New
CALL FOR LEAD TIME$2754.92
Sale Price
$2295.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
PowerPacT J-Frame circuit breakers offer thermal magnetic or electronic trip protection units to safeguard electrical systems from overloads and short circuits, featuring dual-break rotating contacts that minimize peak current during faults and an integral push-to-trip button for manual operation, available in 2-pole and 3-pole configurations with UL, CSA, NOM, and IEC compliance.
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Amperage (Molded Case Breaker)
150 Amp
Poles (Molded Case Breaker)
Three Pole
Frame Type (Molded Case Breaker)
J Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
18 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
14 kA 600 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
