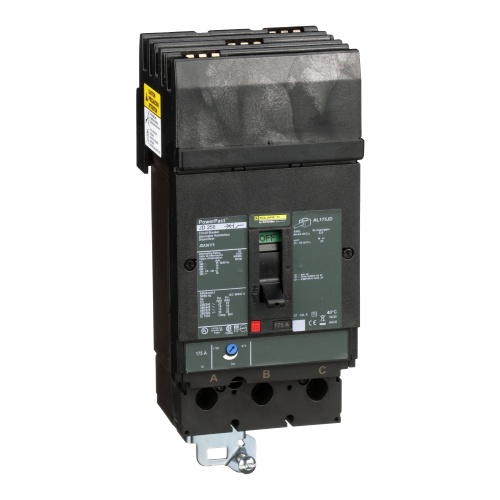

Schneider Electric JDA36175 PowerPacT J-Frame Circuit Breaker Protection
Normally In Stock
Code: 93698

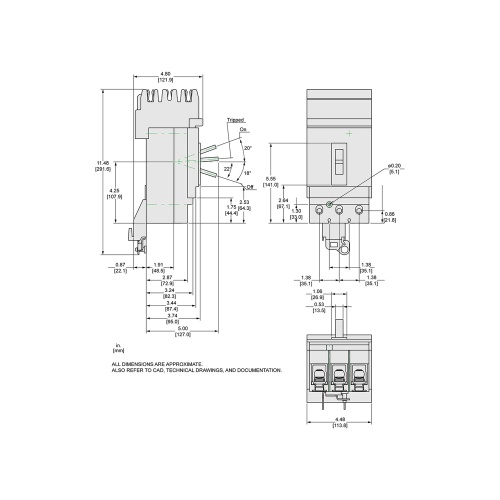

Schneider JDA36175 Circuit breaker 175 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC ABC 80 % 3P I-Line UL Listed, IEC, CE, CCC, CSA PowerPact J D Thermal-magnetic 875 A 1750 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 3 600 V AC,
Condition: New
CALL FOR LEAD TIME$4216.70
Sale Price
$3513.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT J-Frame circuit breakers offer thermal magnetic or MicroLogic electronic trip protection units, providing 14kA breaking capacity at 600VAC, dual-break rotating contacts that minimize peak current during short circuits, and manual push-to-trip buttons for convenient operation in various I-Line and unit mount configurations, meeting UL, CSA, NOM, and IEC standards.
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Poles (Molded Case Breaker)
Three Pole
Frame Type (Molded Case Breaker)
J Frame
Amperage (Molded Case Breaker)
175 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
18 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
14 kA 600 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
