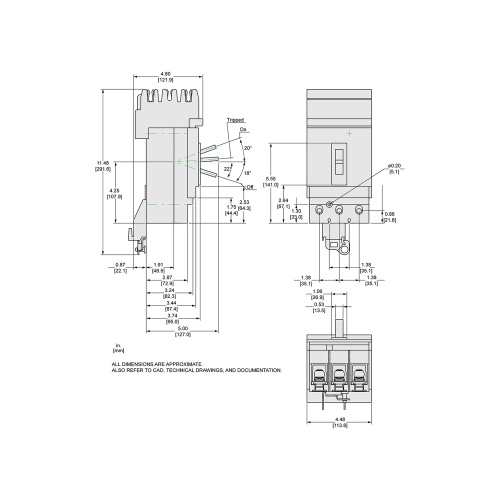

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Schneider Electric JDA36200 PowerPacT J-Frame Circuit Breaker
Normally In Stock
Code: 93700
Schneider JDA36200 Circuit breaker 200 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC ABC 80 % 3P I-Line CE, IEC, CSA, UL Listed, CCC PowerPact J D Thermal-magnetic 1000 A 2000 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 3 600 V AC,
Condition: New
CALL FOR LEAD TIME$2424.76
Sale Price
$2020.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The PowerPacT J-Frame circuit breakers offer thermal magnetic or MicroLogic electronic trip protection units, providing 14kA breaking capacity at 600VAC and dual-break rotating contacts for reduced peak current during short circuits, with a manual push-to-trip button in the cover and I-Line terminations on the line side and mechanical lugs on the load side.
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Poles (Molded Case Breaker)
Three Pole
Frame Type (Molded Case Breaker)
J Frame
Amperage (Molded Case Breaker)
200 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
18 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
14 kA 600 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
