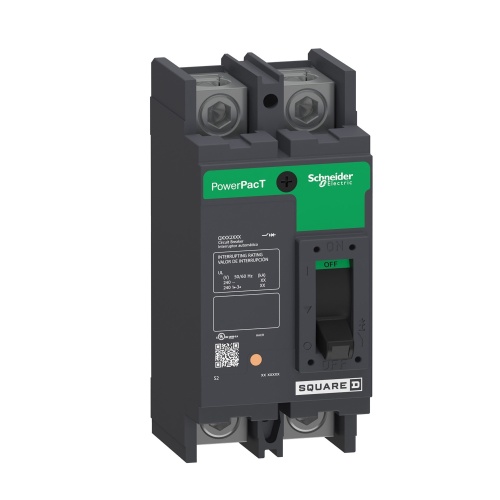

Schneider Electric QBP22200TM PowerpacT Q Circuit Breaker Specification
Normally In Stock
Code: 94156
Schneider QBP22200TM Circuit breaker 200 A 10 kA 240 V AC 80 % Lug OFF end, Stud with nut and washer ON end Unit mount UL Listed, CSA, IEC PowerPact Q B Thermal-magnetic 1200 A 2400 A 6.47 in (164.34 mm 4.5 in (114.30 mm 3.93 in (99.82 mm 2 240 V AC Lugs load, Terminal nut line A
Condition: New
CALL FOR LEAD TIME$367.54
Sale Price
$306.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT Q-Frame circuit breakers provide overcurrent protection and switching on 240VAC systems, featuring thermal magnetic trip protection and a push-to-trip button for manual tripping. Available in 2 and 3-pole unit mount and I-Line constructions, they meet UL, CSA, and NOM standards, as well as IEC certification, with an interrupting rating of 10kA at 208Y/120VAC and 240VAC.
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
200 Amp
Interrupt Code (Molded Case Breaker)
B Interrupt Rating
Frame Type (Molded Case Breaker)
Q Frame
Mounting (Molded Case Breaker)
Unit Mount
Maximum Voltage (Molded Case Breaker)
240 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
10 kA 240 Volt
Phase
Single Phase
Number of Jaws
5
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
