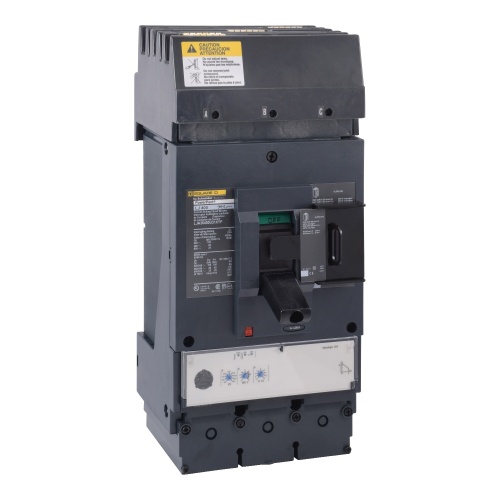

Schneider Electric LJA36600U31XYP PowerPacT L-Frame Circuit Breaker
Normally In Stock
Code: 94215
Schneider LJA36600U31XYP Circuit breaker 70-250 A 3P 80 % I-Line CSA 22-2, CCC, IEC, CE, UL 489, NMX, NEMA PowerPact L 11.3 in (287.02 mm 5.51 in (139.95 mm 6.61 in (167.89 mm I-Line connection line, Busbar connection load Current limiter ABC 100 kA 240 V AC, 65 kA 480 V AC, 25 k
Condition: New
CALL FOR LEAD TIME$10474.55
Sale Price
$8728.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT L-Frame circuit breakers offer protection against overloads and short circuits, featuring electronic trip units with dual-break rotating contacts that reduce peak current during faults. They also have integral push-to-trip buttons for manual tripping and come in various constructions such as I-Line, drawout, 3-pole, and 4-pole unit mount designs, with interrupting ratings ranging from 25kA at 600VAC. These breakers meet standards like UL, CSA, NOM, and IEC, are CE marked, and include features like MicroLogic Standard and a factory-installed padlock handle.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Frame Type (Molded Case Breaker)
L Frame
Amperage (Molded Case Breaker)
70-250 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 240 Volt
Features
Available in 3 or 4 pole design
Protection from overloads and short circuits
Common accessories across the range
