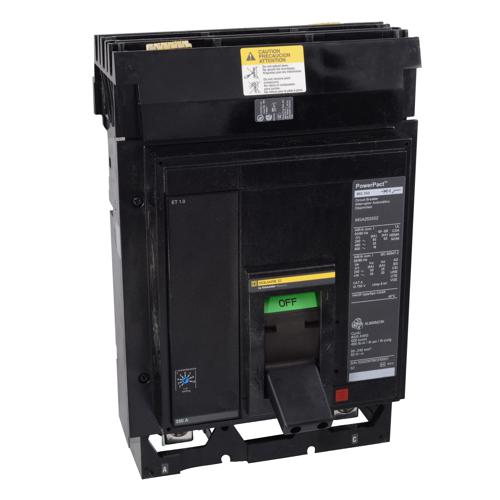

Schneider Electric MJA264002 PowerPacT M-Frame Circuit Breaker
Normally In Stock
Code: 94434
Schneider MJA264002 Circuit breaker 400 A 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC 80 % 2P I-Line M-frame CSA, IEC, UL Listed PowerPact M J AL800M23K Electronic, basic, ET 1.0, LI 800-4000 A 12.86 in (326.6 mm 0.32 in (8.06 mm 8.27 in (210 mm 600 V AC I-Line connection lin
Condition: New
CALL FOR LEAD TIME$11895.53
Sale Price
$9912.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT M-Frame circuit breakers offer protection for electrical systems from overload and short-circuit damage, featuring electronic trip units with either fixed or adjustable amperage settings, integral push-to-trip buttons for manual tripping, and I-Line terminations on the line side and mechanical lugs on the load side.
Specifications
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Amperage (Molded Case Breaker)
400 Amp
Frame Type (Molded Case Breaker)
M Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 240 Volt
Features
Available in 2 or 3 pole design
Standard 80% rating only
Common mounting holes, handle locations, and trim dimensions
