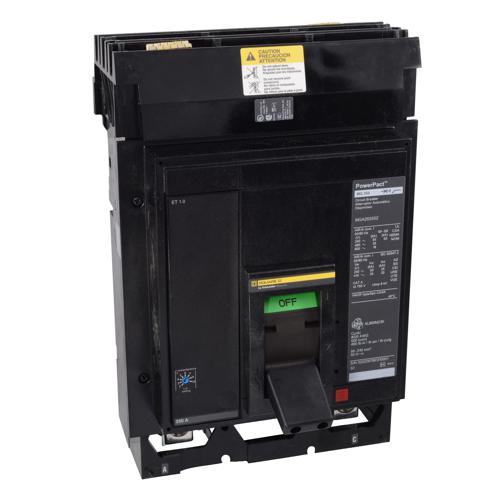

Schneider Electric MJA36800 PowerPacT M-Frame Circuit Breaker Features
Normally In Stock
Code: 94451

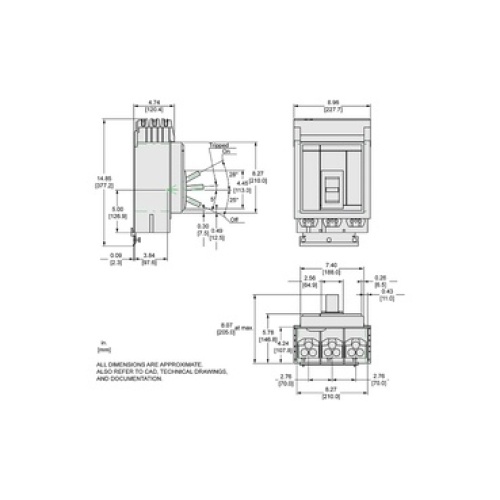

Schneider MJA36800 Circuit breaker 800 A 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC 80 % 3P I-Line M-frame CSA, IEC, UL Listed PowerPact M J AL800M23K Electronic, basic, ET 1.0, LI 1600-8000 A 14.85 in (377.19 mm 8.96 in (227.58 mm 8.07 in (204.98 mm 600 V AC I-Line connecti
Condition: New
CALL FOR LEAD TIME$10681.62
Sale Price
$8901.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
PowerPacT M-Frame circuit breakers are designed to safeguard electrical systems from overloads and short circuits by offering protection against these hazards. They feature an electronic trip unit and an integral push-to-trip button for manual operation, along with various configurations such as 2 or 3-pole units and I-Line construction. This breaker has a high interrupting rating of 25kA at 600VAC and meets standards like UL, CSA, NOM, and IEC, ensuring compliance and safety.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Amperage (Molded Case Breaker)
800 Amp
Frame Type (Molded Case Breaker)
M Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 240 Volt
Features
Available in 2 or 3 pole design
Standard 80% rating only
Common mounting holes, handle locations, and trim dimensions
