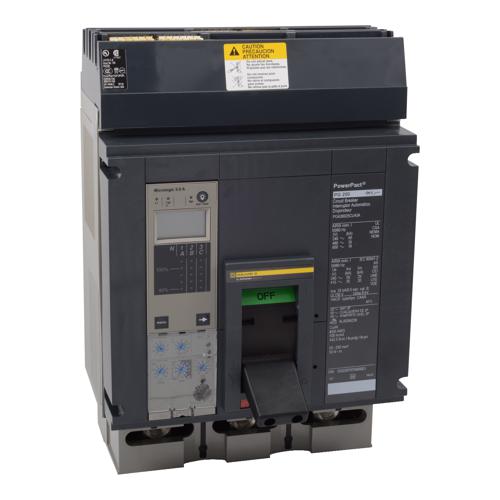

Schneider Electric PJA36100U41A PowerPacT P-Frame Circuit Breaker Overview
Normally In Stock
Code: 94679

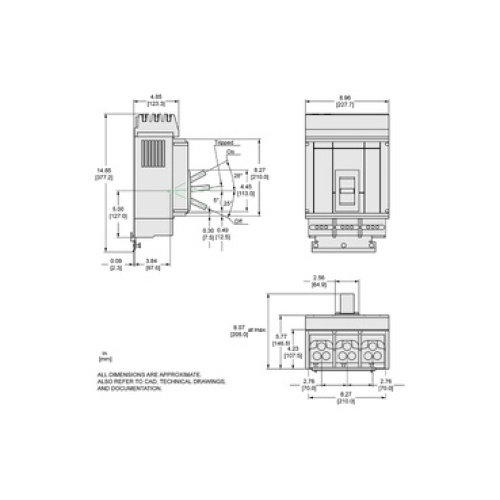

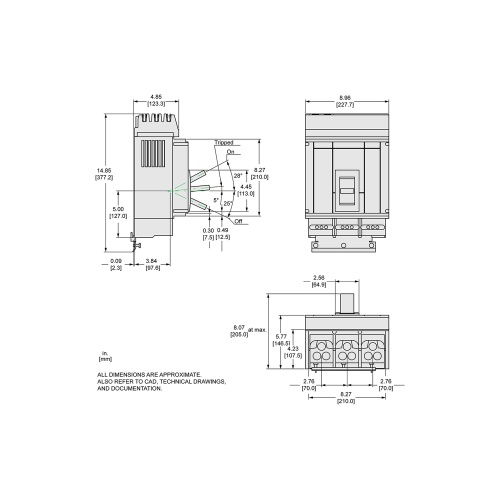

Schneider PJA36100U41A Circuit breaker 1000 A 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC 80 % 3P I-Line A Busbar UL Listed, CSA, IEC PowerPact P J Electronic, ammeter, Micrologic 3.0 A, LI 16.16 in (410.46 mm 8.27 in (210.06 mm 8.05 in (204.47 mm 600 V AC I-Line connection l
Condition: New
CALL FOR LEAD TIME$29867.21
Sale Price
$24889.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT P-Frame circuit breakers provide protection for electrical systems against overloads and short circuits, featuring either fixed electronic trip units or interchangeable Micrologic trip units for flexibility in field settings, with options available in 2-pole, 3-pole, and I-Line constructions and an interrupting rating of up to 25kA at 600VAC.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Amperage (Molded Case Breaker)
1000 Amp
Frame Type (Molded Case Breaker)
P Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Mounting (Molded Case Breaker)
Busbar
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 240 Volt
Features
Available in 2, 3, 4 pole design
Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
