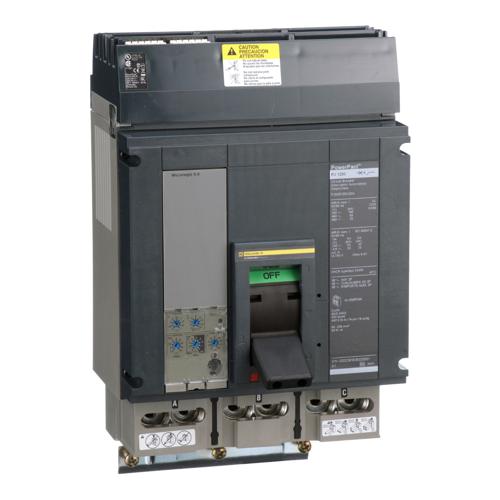

Schneider Electric PJA36120U33A PowerPacT P-Frame Circuit Breaker Overview
Normally In Stock
Code: 94694
Schneider PJA36120U33A Circuit breaker 1200 A 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC 80 % 3P I-Line A Busbar IEC, CSA, UL Listed PowerPact P J Electronic, standard, Micrologic 5.0, LSI 16.16 in (410.46 mm 8.27 in (210.06 mm 8.05 in (204.47 mm 600 V AC I-Line connection l
Condition: New
CALL FOR LEAD TIME$29199.14
Sale Price
$24332.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT P-Frame circuit breakers offer flexible protection against overloads and short circuits, featuring Micrologic trip units that can be interchanged in the field for maximum flexibility, or fixed electronic trip units. These circuit breakers have integral push-to-trip buttons, I-Line terminations on the line side, mechanical lugs on the load side, and comply with various standards including UL, CSA, NOM, and IEC, with CE marking indicating compliance with European regulations.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
J Interrupt Rating
Amperage (Molded Case Breaker)
1200 Amp
Frame Type (Molded Case Breaker)
P Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Mounting (Molded Case Breaker)
Busbar
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 240 Volt
Features
Available in 2, 3, 4 pole design
Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
