Schneider Electric PLA34120U44A PowerpacT P-Frame Circuit Breaker
Normally In Stock
Code: 94871

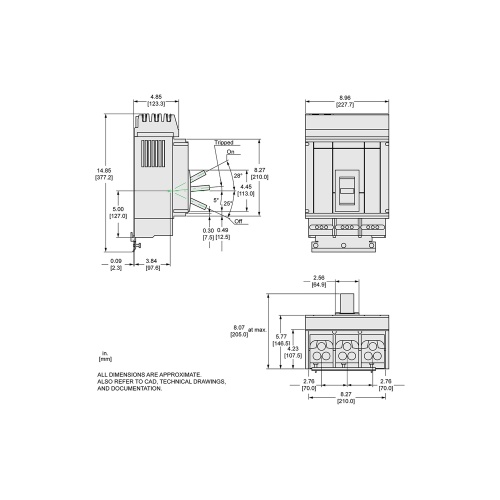

Schneider PLA34120U44A Circuit breaker 1200 A 125 kA 240 V AC, 100 kA 480 V AC 80 % 3P I-Line A Busbar UL Listed, CSA, IEC PowerPact P L Electronic, ammeter, Micrologic 6.0 A, LSIG 16.16 in (410.46 mm 8.27 in (210.06 mm 8.05 in (204.47 mm 480 V AC I-Line connection line, Lugs loa
Condition: New
CALL FOR LEAD TIME$35843.26
Sale Price
$29869.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PowerPacT P-Frame circuit breakers protect electrical systems from overloads and short circuits, featuring fixed long time electronic trip units or Micrologic trip units that offer flexibility in the field. They have an integral push-to-trip button, interchangeable Micrologic trip units, a 6.0A trip unit with an LSIG function, and are available in various configurations, including I-Line drawout construction, with interrupting and continuous current ratings up to 100kA at 480VAC, meeting standards from UL, CSA, NOM, and IEC.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
L Interrupt Rating
Amperage (Molded Case Breaker)
1200 Amp
Frame Type (Molded Case Breaker)
P Frame
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
480 VAC
Mounting (Molded Case Breaker)
Busbar
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
125 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
100 kA 480 Volt
Features
Available in 2, 3, 4 pole design
Common mounting holes, handle locations and trim dimensions for design standardization
Common accessories across the range
