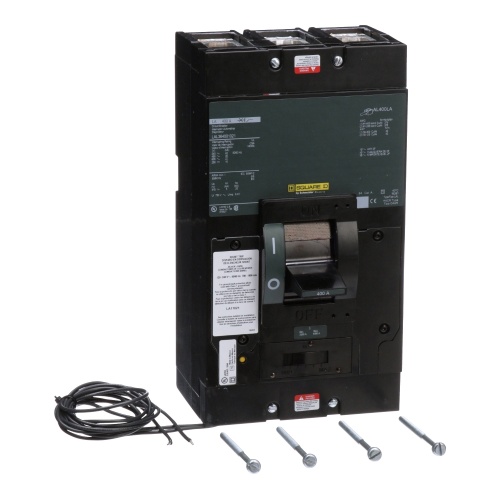

Schneider Electric LAL364001021 Square D LA Circuit Breaker Overview
Normally In Stock
Code: 95116
Schneider LAL364001021 Circuit breaker 400 A 3P Unit mount IEC, CSA, UL Listed 2000 A 4000 A 11 in (279.40 mm 6 in (152.40 mm 5.84 in (148.34 mm 600 V AC, 250 V DC Lugs load, Lugs line 42 kA 240 V AC, 30 kA 480 V AC, 22 kA 600 V AC, 10 kA 125 V DC, 10 kA 250 V DC Thermal-magnetic
Condition: New
CALL FOR LEAD TIME$7223.32
Sale Price
$6019.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Square D LA molded case circuit breakers offer thermal magnetic protection, automatically opening a circuit under overload or short circuit conditions or manually tripped using Push-to-Trip. They have thermal and magnetic sensing elements in each pole, are mountable breaker units, rated for 400A and 600VAC with lugs, and come in various configurations such as the 1021 suffix indicating factory installed shunt trips, certified by UL 489, CSA, and IEC standards.
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
400 Amp
Frame Type (Molded Case Breaker)
LA Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
42 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
30 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
22 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
10 kA 125 Volt
Interrupt Rating (Molded Case Breaker)
10 kA 250 Volt
Features
For manual circuit open or automatic current interruption for overload or short circuit conditions
Contains thermal sensing for overload and magnetic for short circuit in each pole
Flexible platform for various types of mounting and terminations
