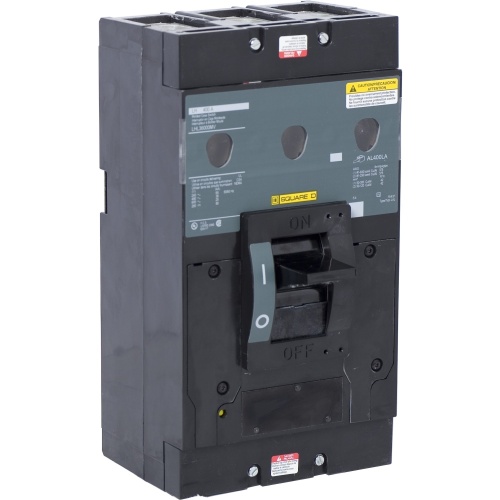

Schneider Electric LHL36000MV Square D LH Automatic Switches Offer Instant Disconnection
Normally In Stock
Code: 95154

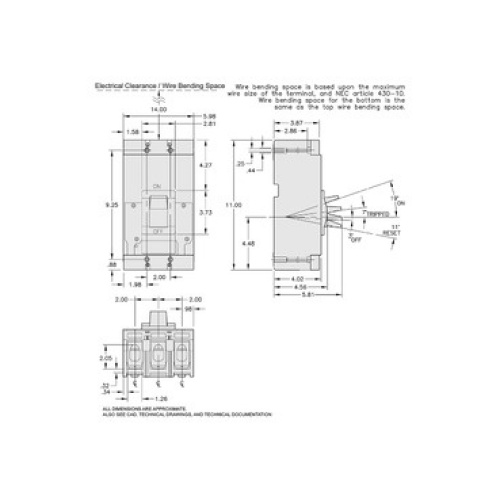

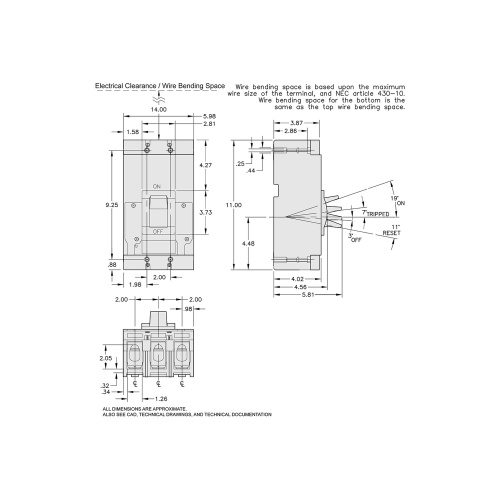

Schneider LHL36000MV Circuit breaker 400 A 3P Unit mount CSA, UL Listed, IEC Visi-blade 8000 A 9600 A 11 in (279.40 mm 6 in (152.40 mm 5.84 in (148.34 mm 600 V AC, 250 V DC Lugs load 25 kA 600 V AC, 65 kA 240 V AC, 35 kA 480 V AC, 50 kA 250 V DC, 50 kA 125 V DC Thermal-magnetic A
Condition: New
CALL FOR LEAD TIME$6791.87
Sale Price
$5659.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Square D LH automatic molded case switches offer a disconnect point that allows for normal operating openings and closings, while also protecting the switch from high fault currents by instantly opening at a factory preset magnetic trip point. This 3 pole unit mount, rated for 400A and 600VAC, features lugs and includes a Visi-Blade suffix to allow viewing contact positions, meeting standards such as UL, CSA, ANCE, and IEC.
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
400 Amp
Frame Type (Molded Case Breaker)
LH Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 kA 240 Volt
Interrupt Rating (Molded Case Breaker)
35 kA 480 Volt
Interrupt Rating (Molded Case Breaker)
25 kA 600 Volt
Interrupt Rating (Molded Case Breaker)
50 kA 250 Volt
Interrupt Rating (Molded Case Breaker)
50 kA 125 Volt
Features
To open and close a circuit under normal operating conditions
Can make and break its rated current
Factory set nonadjustable trip point to protect the molded case switch
