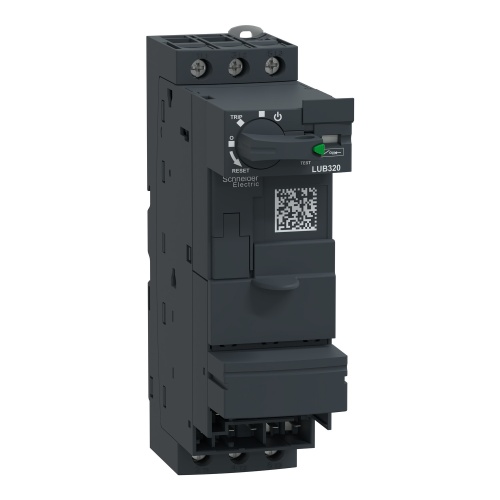

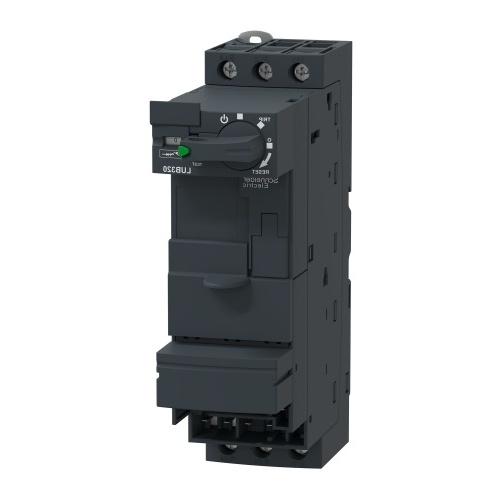

Schneider Electric LUB320 TeSys U Advanced Power Base Starter Controller
Normally In Stock
Code: 98850
Buy Schneider LUB320 Non-reversing power base 32 A 24 V AC 50/60 Hz, 24 V DC, 48-72 V AC 50/60 Hz, 48-72 V DC, 110-240 V AC 50/60 Hz, 110-220 V DC TeSys U 32 A <= 440 V, 23 A 500 V, 21 A 690 V 3P IEC Starters TeSys U Combination Motor Starter Power base
Condition: New
Normally Stocked$576.62
Sale Price
$480.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The TeSys U advanced power base is an 8-in-1 starter controller designed for 3-phase motor applications up to 15kW@400V, featuring a modular design that can be expanded with additional modules for enhanced protection and control functions. The unit includes power contacts, control coil, rotary handle, and auxiliary signaling contacts, providing high breaking capacity of up to 50kA@400V and guaranteed start-stop control for 3600 cycles/hour, all while being compact and easily mounted on a DIN-rail with screw fixing.
Specifications
Starter Coil Voltage
24 VAC
Starter Coil Voltage
24 VDC
Starter Coil Voltage
48-72 VAC
Starter Coil Voltage
48-72 VDC
Starter Coil Voltage
110-240 VAC
Starter Coil Voltage
110-220 VDC
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
32 Amp
Sub Component
Power Accessories
Features
Number of direction of rotation to be controlled is 1
Type of control to be achieved is Advanced control
Modular, plug & play structure helps you to perform quick maintenance
