Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

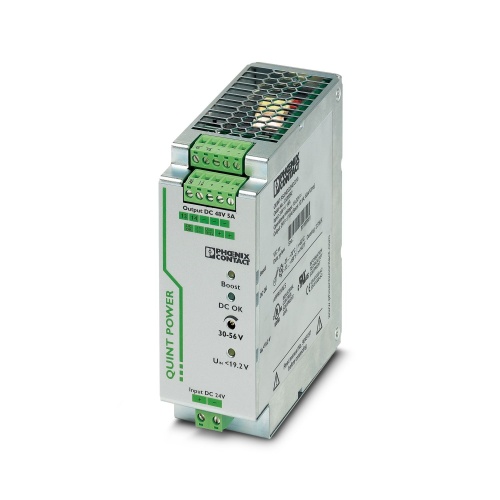

Phoenix Contact 2320128 DC/DC converter QUINT-PS/24DC/48DC/ 5
Normally In Stock
Code: 12125
QUINT-PS/24DC/48DC/ 5 Phoenix Contact 2320128 DCDC Converter 18-32V48V 5A QUINT
Condition: New
Usually ships Same Day or Next Day$650.11
Sale Price
$541.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2320128 A primary-switched QUINT DC/DC converter designed for installation on a DIN rail is available, featuring SFB technology. It operates with a 24V DC input and produces a 48V DC output at a maximum current capacity of 5A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
18 VDC - 32 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Preventive function monitoring indicates critical operating states before errors occur
Constant voltage: output voltage regenerated even at the end of long cables
Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125% nominal current permanently
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2320128 CAD data International.dxfPhoenix 2320128 CAD data International.pdfPhoenix 2320128 CAD data International.stpPhoenix 2320128 CAD Drawing.zipPhoenix 2320128 Intallation Guide.pdfPhoenix 2320128 Manufacturers declaration English.pdfPhoenix 2320128 Manufacturers declaration International-2.pdfPhoenix 2320128 Manufacturers declaration International-3.pdfPhoenix 2320128 Manufacturers declaration International-4.pdfPhoenix 2320128 Manufacturers declaration International.pdfPhoenix 2320128 Package Slip International.pdfPhoenix 2320128 Product Information English.pdfPhoenix 2320128 Spec Sheet.pdfPhoenix 2320128 Tender Text English.zipPhoenix 2320128 Various English.pdfPhoenix 2320128 Various English.wmv
