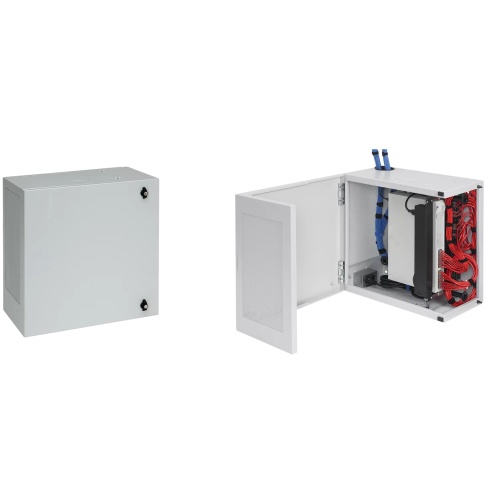

Hoffman DBL242412G 24"x24"x13.0" L-Box Network Cabinet Type 1
Normally In Stock
Code: 18238
Hoffman DBL242412G 24"x24"x13.0" Wall Mount L-Box Network Cabinet Type 1 (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$1304.32
Sale Price
$1003.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman DBL242412G 24"x24"x13.0" L-Box Network Cabinet Type 1
Specifications
Enclosure knockouts
Includes Knockouts
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Depth
13"
Enclosure Lock Type
Keylocking
Rack Units
6
Enclosure Height
24"
Manufacturer
Hoffman
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Composition
Steel
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 1
Enclosure Type
L-Box Network Cabinet
Features
Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
Quarter-turn latches with key lock
One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
120-degree door opening for maximum eqiupment access
Spring-loaded, self-retained hinge pins allow door removal
Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Multiple cable tie-down points on back of cabinet
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
Downloads

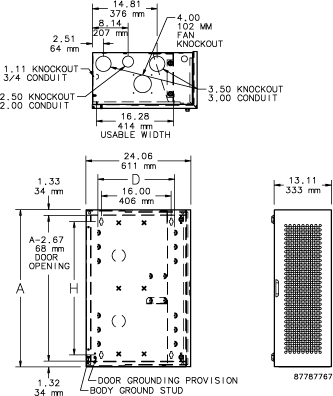

Hoffman DBL242412G 2D DXF CAD.zipHoffman DBL242412G 3D STEP CAD.zipHoffman DBL242412G CAD Drawing.zipHoffman DBL242412G Declaration of Compliance.pdfHoffman DBL242412G Dimension Drawing.gifHoffman DBL242412G EU Certification.pdfHoffman DBL242412G Instruction Manual.pdfHoffman DBL242412G Instructions.pdfHoffman DBL242412G Spec Sheet.pdfHoffman DBL242412G UL Certification.pdf
