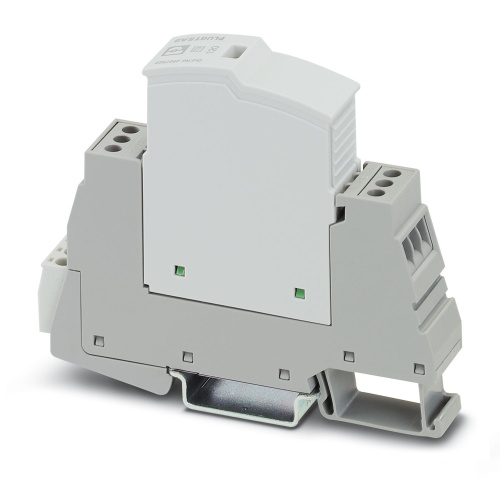

Phoenix Contact 2907918 Type 3 surge protection device PLT-SEC-T3-120-FM-UT
Normally In Stock
Code: 56876
PLT-SEC-T3-120-FM-UT Phoenix Contact PLT-SEC-T3-120-FM-UT Surge Protection for 120 volt AC/DC. Type 2/3 with base and plug-in surge protector din rail mount.
Condition: New
Usually ships within 7-14 days. Call for ship time.$229.63
Sale Price
$191.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

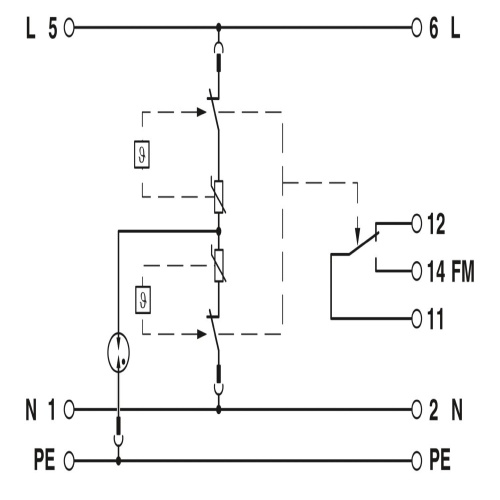

Phoenix Contact 2907918 A type 2/3 surge protection device consists of a protective plug and base element that work together to safeguard single-phase power supply networks from electrical surges, featuring an integrated status indicator that provides real-time monitoring and remote signaling capabilities for enhanced safety and control.
Specifications
Surge Protector Mount
Din Rail Mount
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-in connection
Surge Protector Line Voltage
120 Volt
Surge Protector Type
Surge protection for information technology
Maximum Continous Voltage
15 Volt
Nominal Discharge Current
5 kA
Component
Surge Protection Device
Downloads
Phoenix 2907918 CAD data International.dxfPhoenix 2907918 CAD data International.pdfPhoenix 2907918 CAD data International.stpPhoenix 2907918 Flyer English.pdfPhoenix 2907918 Flyer English-2.pdfPhoenix 2907918 Manufacturers declaration English.pdfPhoenix 2907918 Manufacturers declaration International.pdfPhoenix 2907918 Package Slip International.pdfPhoenix 2907918 Product Information English.pdfPhoenix 2907918 Surge Protection English.pdfPhoenix 2907918 Tender Text English.zipPhoenix 2907918 Various English.pdf
