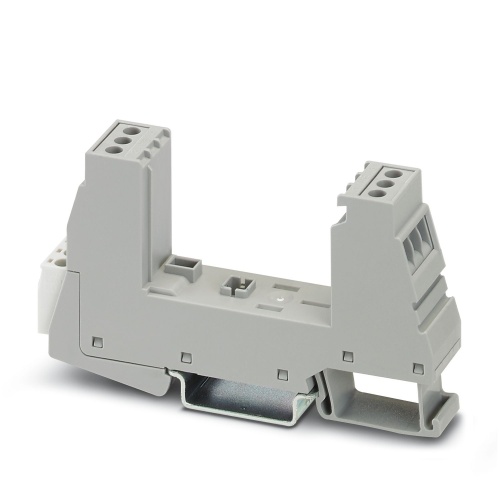

Phoenix Contact 2907924 Type 3 surge protection base element PLT-SEC-T3-BE-FM-UT
Normally In Stock
Code: 72100
PLT-SEC-T3-BE-FM-UT Phoenix 2907924 Base element 240 VAC Screw connection Type 3 surge protection base element Surge Protection
Condition: New
Usually ships Same Day or Next Day$61.15
Sale Price
$50.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907924 The base component used in protective plugs from the PLT-SEC-...-UT/PT product series that features a remote indication contact is the actual product itself, but in a more specific sense, it would be its internal circuitry and components, including the remote indication device.
Specifications
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw connection
Surge Protector Type
Surge arrester
Maximum Continous Voltage
385 Volt
Nominal Discharge Current
15 kA
Surge Protector Line Voltage
240 Volt
Component
Surge Protection Plug
Downloads
Phoenix 2907924 CAD data International.dxfPhoenix 2907924 CAD data International.pdfPhoenix 2907924 CAD data International.stpPhoenix 2907924 Flyer English.pdfPhoenix 2907924 Flyer English-2.pdfPhoenix 2907924 Manufacturers declaration English.pdfPhoenix 2907924 Manufacturers declaration International.pdfPhoenix 2907924 Package Slip International.pdfPhoenix 2907924 Surge Protection English.pdfPhoenix 2907924 Tender Text English.zip
