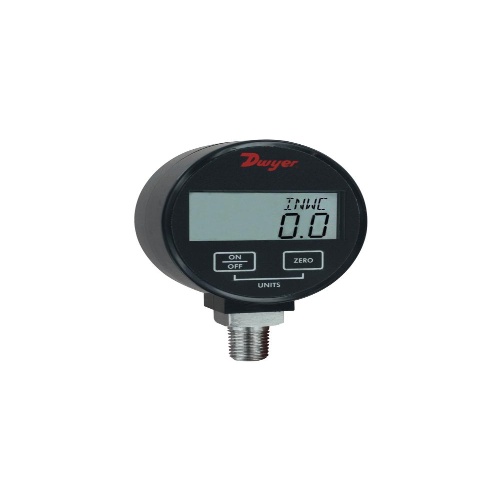

Dwyer DPGW-09 Digital Pressure Gauge With 1% Accuracy
Normally In Stock
Code: 571955
Dwyer DPGW-09 - Digital pressure gauge, range 0 to 200 psi, selectable engineering units: 200.0 psig, 14.06 kg/cm², 13.79 bar, 407.2" Hg, 461.3 ft w.c., 1379 kPa, 3200 oz/in², 0.1 psi resolution.
Condition: New
Usually ships Same Day or Next Day$197.96
Sale Price
$164.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPGW-09 is a Digital Pressure Gauge with 1% accuracy. It operates in a temperature range of 30 to 120°F (-1 to 49°C) and has an accuracy of ±1.0% F.S. The gauge runs on a 9V alkaline battery, which is included and user replaceable. The housing is made of ABS plastic and it is suitable for air and compatible gases. The display is a 4-digit LCD, and the wetted material is 316L SS for DPGA and DPGW. The pressure limit is 2X the pressure range, with a maximum pressure of 30 psig for vacuum range. It has a 1/4" male NPT process connection and a thermal effect of 0.05% FS/°F. The dimensions are 2.62" OD x 1.52" deep. The gauge features a 20-minute auto shut-off.
Specifications
Manufacturer
Dwyer
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Supply Voltage
9 V Battery
(Instrument-Sensor) Temperature Range
30 - 120°F/-1 - 49°C
Features
Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out of specification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifying simple operation and accuracy
