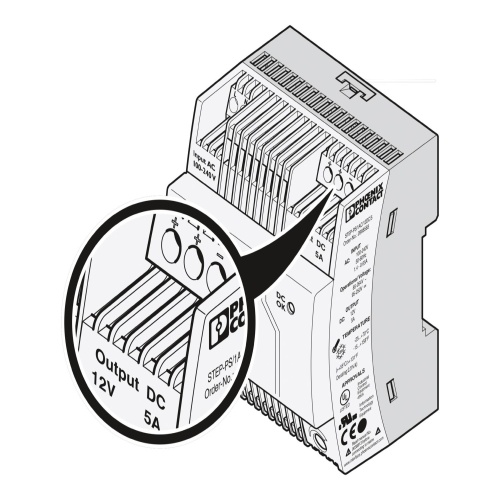

Phoenix Contact 2868583 Power supply STEP-PS/ 1AC/12DC/5
Normally In Stock
Code: 601
STEP-PS/ 1AC/12DC/5 Phoenix Contact STEP-PS/1AC/12DC/5. 12 volt 5 Amp output Power Supply(Class 1 Div 2) and 85-264 Vac or 95-250 Vdc input voltage. Temperature range of -13 F to 158 F. Din rail mount. (3.54"H x 2.84"W x 2.4"D).
Condition: New
Usually ships Same Day or Next Day$156.32
Sale Price
$130.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2868583 A standard stepped-down power supply unit is mounted on a DIN rail and can be powered by a single-phase electrical current, producing an output voltage of 12V DC while supplying up to 5 amps of electric current.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
12 VDC
Power Supply Watts
60 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Reliable power supply thanks to high MTBF (mean time between failures) of more than 500,000 hours and U/I characteristic curve
Energy savings thanks to maximum energy efficiency and incredibly low idling losses
Flexible mounting by simply snapping onto the DIN rail or screwing onto a level surface
Downloads
Phoenix 2868583 CAD data International.dxfPhoenix 2868583 CAD data International.pdfPhoenix 2868583 CAD data International.stpPhoenix 2868583 CAD Drawing.dxfPhoenix 2868583 Data Sheet English.pdfPhoenix 2868583 Manufacturers declaration English.pdfPhoenix 2868583 Manufacturers declaration International.pdfPhoenix 2868583 Manufacturers declaration International-2.pdfPhoenix 2868583 Manufacturers declaration International-3.pdfPhoenix 2868583 Package Slip International.pdfPhoenix 2868583 Spec Sheet.pdfPhoenix 2868583 Tender Text English.zipPhoenix 2868583 User Manual.pdfPhoenix 2868583 Various English.pdf
