Phoenix Contact 2907916 Type 3 surge protection device PLT-SEC-T3-24-FM-UT
Normally In Stock
Code: 72194
PLT-SEC-T3-24-FM-UT Phoenix 2907916 Device protection 24 VAC Screw connection Type 3 surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$229.63
Sale Price
$191.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

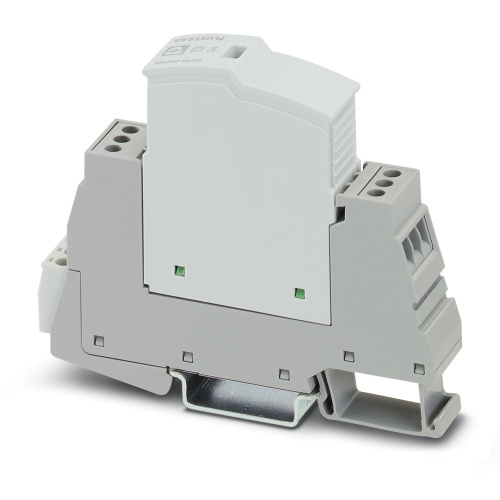

Phoenix Contact 2907916 Type 3 surge protection devices feature a protective plug and base unit that come together as a single component, often equipped with a built-in status indicator to provide real-time information on the device's condition. This type of surge protection is commonly used in single-phase power supply networks and operates within a nominal voltage range of 24V AC/DC.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw connection
Surge Protector Line Voltage
24 Volt
Maximum Continous Voltage
30 Volt
Surge Protector Type
Surge protection for information technology
Nominal Discharge Current
5 kA
Component
Surge Protection Device
Features
Your preferred connection technology can be selected as both screw connection and Push-in connection are available
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Optimal additional protection of the industrial power supply for a longer service life and increased availability of the system
Downloads
Phoenix 2907916 CAD data International.dxfPhoenix 2907916 CAD data International.pdfPhoenix 2907916 CAD data International.stpPhoenix 2907916 Flyer English.pdfPhoenix 2907916 Flyer English-2.pdfPhoenix 2907916 Manufacturers declaration English.pdfPhoenix 2907916 Manufacturers declaration International.pdfPhoenix 2907916 Package Slip International.pdfPhoenix 2907916 Product Information English.pdfPhoenix 2907916 Surge Protection English.pdfPhoenix 2907916 Tender Text English.zip
