Phoenix Contact 2320898 Power supply, with protective coating QUINT-PS/1AC/24DC/20/CO
Normally In Stock
Code: 665
Phoenix Contact QUINT-PS/1AC/24DC/20/CO. 24 VDC output 20 Amp Premium Power Supply(Class 1 Div 2) with input voltage 85-240 Vac or 90-350 Vdc. Temperature range of -13 F to 158 F. Din rail mount Screw Connection.
Condition: New
Usually ships Same Day or Next Day$1147.57
Sale Price
$956.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

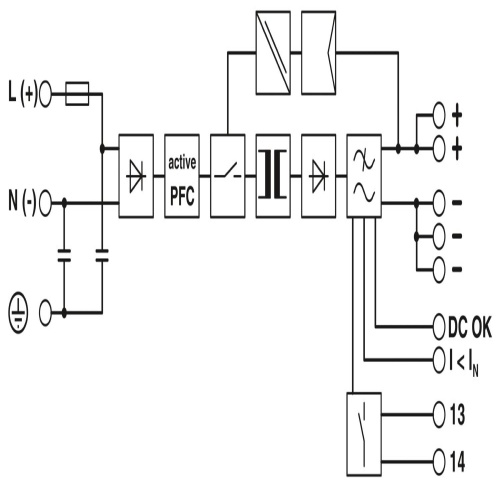

Phoenix Contact 2320898 The QUINT POWER is a primary-switched power supply unit designed with screw connections and DIN rail mounting for easy installation. It features SFB Technology, which includes selective fuse breaking capabilities, ensuring reliable operation. The device accepts a single-phase input and produces a stable 24V DC output of up to 20 amps.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
480 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
16-20 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Preventive function monitoring
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Optimum protection with dip coating for 100 % humidity
Downloads
Phoenix 2320898 CAD data International.dxfPhoenix 2320898 CAD data International.pdfPhoenix 2320898 CAD data International.stpPhoenix 2320898 CAD Drawing.dxfPhoenix 2320898 Data Sheet English.pdfPhoenix 2320898 Manufacturers declaration English.pdfPhoenix 2320898 Manufacturers declaration International-2.pdfPhoenix 2320898 Manufacturers declaration International-3.pdfPhoenix 2320898 Manufacturers declaration International-4.pdfPhoenix 2320898 Manufacturers declaration International.pdfPhoenix 2320898 Package Slip International.pdfPhoenix 2320898 Spec Sheet.pdfPhoenix 2320898 Tender Text English.zipPhoenix 2320898 User Manual.pdfPhoenix 2320898 Various English.pdfPhoenix 2320898 Various English.wmv
