Phoenix Contact 1075240 DC/DC converter TRIO-PS-2G/1500DC/24DC/8
Normally In Stock
Code: 68282
TRIO-PS-2G/1500DC/24DC/8 Phoenix 1075240 DC/DC converters 510 VDC - 1650 VDC 8 Amp 510 VDC - 1650 VDC Power Supplies and UPS
Condition: New
Usually ships Same Day or Next Day$621.56
Sale Price
$517.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

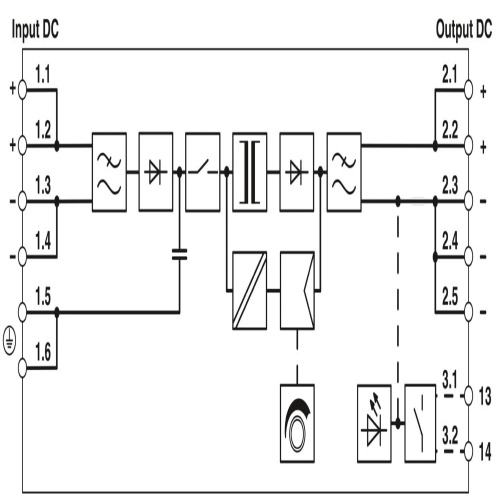

Phoenix Contact 1075240 A primary-switched TRI-O power DC/DC converter with push-in connections for easy DIN rail mounting is available. It has an input voltage of 1500V DC and provides a stable output voltage of 24V DC at a maximum current rating of 8A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
192 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
8 Amp
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Voltage Input Range
510 VDC - 1650 VDC
Component
DC-DC
Features
Quick and easy installation with Push-in connection
High system availability with a robust design that ensures partial discharge resistance
Direct, immediate supply from the solar field to supply the string monitoring function within string combiner boxes
Suitable for use in all photovoltaic systems with high input voltage due to conformity with standards UL 62109 and UL 1741
