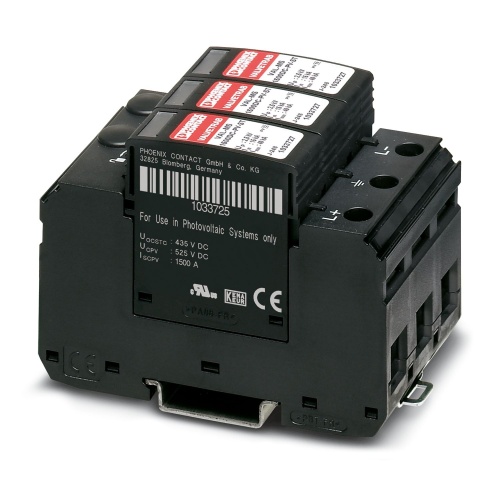

Phoenix Contact 1033708 Type 2 surge arrester VAL-MS 1500DC-PV/2+V
Normally In Stock
Code: 72236
VAL-MS 1500DC-PV/2+V Phoenix 1033708 PV arrester 1500 VDC Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$385.63
Sale Price
$321.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

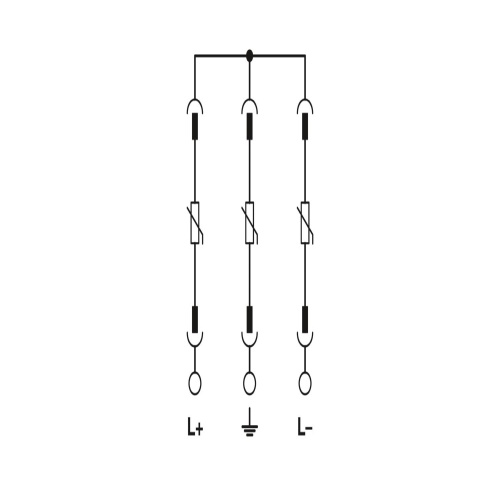

Phoenix Contact 1033708 A surge protective device designed for use with two-position isolated and grounded DC power systems rated at 1500V, suitable for DIN rail mounting, features a three-part base element consisting of three individually monitored protective elements connected to each plug, providing real-time status updates through a visible message on each connector.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw connection
Surge Protector Type
Surge arrester
Maximum Continous Voltage
760 Volt
Nominal Discharge Current
15 kA
Surge Protector Line Voltage
1500 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
