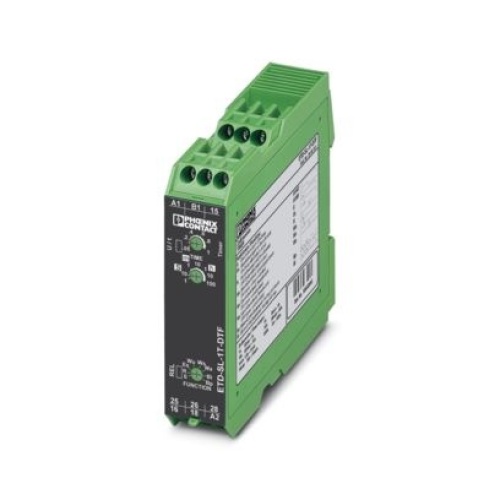

EMD-SL-PS- 24AC Phoenix Contact 2866161 Timed relay 2floatingPDTcontacts
Code: 69055
Phoenix 2866161 Timed relay 2floatingPDTcontacts 24 VDC - 240 VDC -20 % - +25 % Screw connection Relays
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
Multi-functional timer relay with 8 functions and an adjustable time range (50 ms - 100 h), wide-range power supply unit, 2 PDTs
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Poles
Double Pole
Relay Timing Range
5
Manufacturer
Phoenix Contact
Component
Timer Relay
Relay Load Voltage AC Rating
250 Volt
Coil Voltage Rating
24-240 Volt
Features
Variable supply voltage range
Time ranges from a few milliseconds to several days
2 floating changeover contact outputs
Universal use thanks to wide range of functions and selectable time ranges
Downloads
Phoenix 2866161 CAD data International.dxfPhoenix 2866161 CAD data International.pdfPhoenix 2866161 CAD data International.stpPhoenix 2866161 Data Sheet English.pdfPhoenix 2866161 Manufacturers declaration International.pdfPhoenix 2866161 Package Slip International.pdfPhoenix 2866161 Product Information English.pdfPhoenix 2866161 Tender Text English.zip
