Phoenix Contact 1065635 Capacity module QUINT4-CAP/24DC/20/16KJ/USB
Normally In Stock
Code: 731

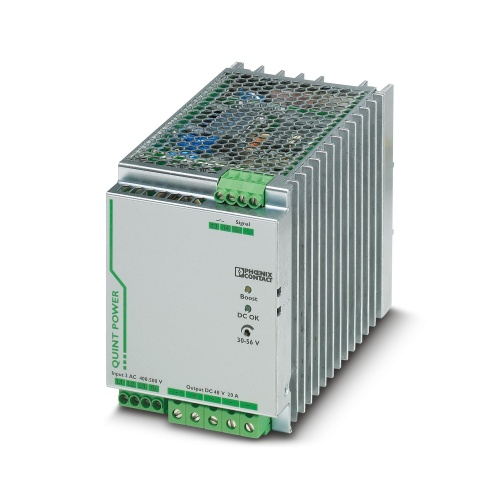

Phoenix Contact QUINT-PS/3AC/48DC/20. 48 VDC output 20 Amp Premium Power Supply(Class 1 Div 2) with 3-Phase input voltage 320-575 Vac or 450-800 Vdc . Din rail mount Screw Connection. Temperature range of -13 F to 158 F.
Condition: New
Usually ships Same Day or Next Day$1222.12
Sale Price
$1018.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1065635 A Quint capacity module is designed with energy storage using a double-layer capacitor and can be easily installed on a DIN rail, featuring an input voltage of 24V DC and output voltage and current capabilities including up to 20 Amps at 16 kJ.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Watts
960 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Manufacturer
Phoenix Contact
Line
QUINT
Component
Capacitor
Power Supply Voltage Input Range
320 VAC - 575 VAC
Power Supply Voltage Input
440VAC
Power Supply Amperage Output Range
16-20 Amp
Features
Preventive function monitoring indicates critical operating states before errors occur
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
Adjustable output voltage of 30 to 56 V DC
Downloads
Phoenix 2320827 CAD data International.dxfPhoenix 2320827 CAD data International.pdfPhoenix 2320827 CAD data International.stpPhoenix 2320827 CAD Drawing.dxfPhoenix 2320827 Manufacturers declaration English.pdfPhoenix 2320827 Manufacturers declaration International-2.pdfPhoenix 2320827 Manufacturers declaration International-3.pdfPhoenix 2320827 Manufacturers declaration International.pdfPhoenix 2320827 Package Slip International.pdfPhoenix 2320827 Spec Sheet.pdfPhoenix 2320827 Tender Text English.zipPhoenix 2320827 User Manual.pdfPhoenix 2320827 Various English.pdfPhoenix 2320827 Various English.wmv
