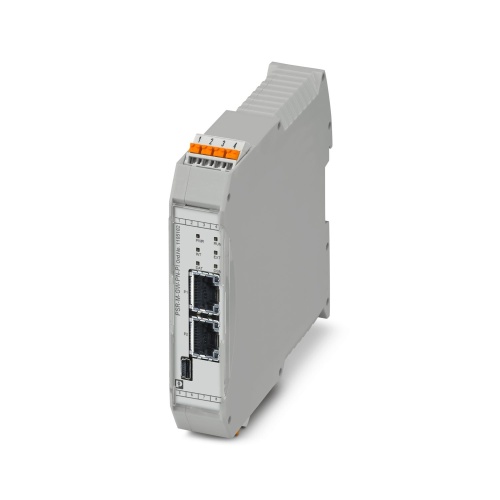

Phoenix Contact 1105101 Data interface PSR-M-GW-PN-SC
Normally In Stock
Code: 73118
PSR-M-GW-PN-SC Phoenix 1105101 Data interface
Condition: New
Usually ships Same Day or Next Day$459.07
Sale Price
$382.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1105101 The component allows for the connection between a PSR-M base module and a more advanced control system, such as PROFINET or TBUS, utilizing a pluggable screw terminal block with an integrated TBUS connector.
Specifications
Safety Connection Method
Screw connection
Safety Degree of Protection
IP20
Safety Interfaces
TBUS
Safety Network Interface
PROFINET
Safety Connection Method
RJ45 jack
Safety Connection Method
USB 2.0 Hi-Speed
Safety Transmission Speed
100 Mbps
Component
Gateways-Proxies
Manufacturer
Phoenix Contact
Sub Component
Data interface
Safety Relay Supply Voltage
25 VDC -20 % - +20 % (external fuse typically 4 A)
Features
Low housing width of just 22.6 mm
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
