Omega DPG5500B-5KG Min/Max Digital Pressure Gauge
Normally In Stock
Code: 805632

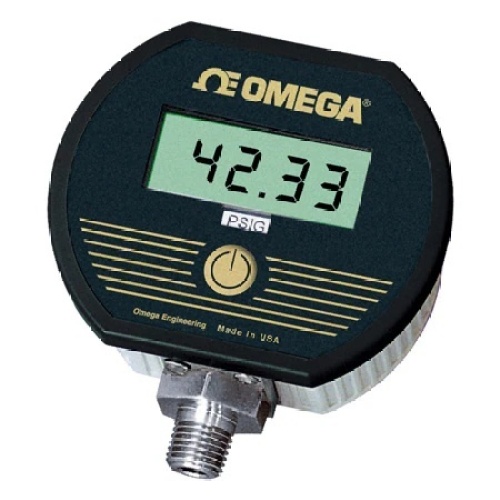

Omega DPG5500B-5KG Min/Max Digital Pressure Gauge
Condition: New
Usually ships Same Day or Next Day$865.37
Sale Price
$721.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Min/Max Digital Pressure Gauge, Advanced, Gauge, 0 psi to 5000 psi, ± 0.25 %, 1/4 " NPT Male, 4 Digit, Battery Powered, Extruded Aluminum Enclosure, DPG5500 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Min/Max Digital Pressure Gauge
Features
Now with Selectable Engineering Units
Capture Minimum and Maximum Readings
Zero with One-Touch
316 Stainless Steel Wetted Parts
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.25% FS ± 1 least significant digit
linearity, hysteresis and repeatability combined
Auto-Shutoff5 minutes, standard with NS option
Battery life2000 hr
Battery Size and TypeAlkaline AA
Burst Pressure4x Full Scale or Maximum 10,000 psi
Calibration± 10%
Calibration NoteInternal controls, non interactive zero, span and linearity ± 10% range
Display TypeLCD
Display Type Note4 digit, LCD, 10.16 mm (0.4") digit height, 3 readings per second, nominal update rate
Enclosure MaterialAluminum
Height76 mm
Number of Batteries2
Number of Digits4
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Outer Diameter51 mm
Pressure Accuracy± 0.25 %
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Shipping Weight454 g
Storage Temperature, Max95 °C
Storage Temperature, Min-40 °C
Supply Power NoteBattery Note:2 “AA” alkaline included, approximately 2000 hr (150 to 1500 hr for DPG5600 models
low battery indicator
Supply Power TypeBattery
Thermal Effects± 0.5% of span (typical), ± 1% of span (maximum) 0 to 82°C (32 to 180°F)
Weight255 g
Weight Note255 g (9 oz)
shipping weight: 454 g (1 lb)
Width89 mm
