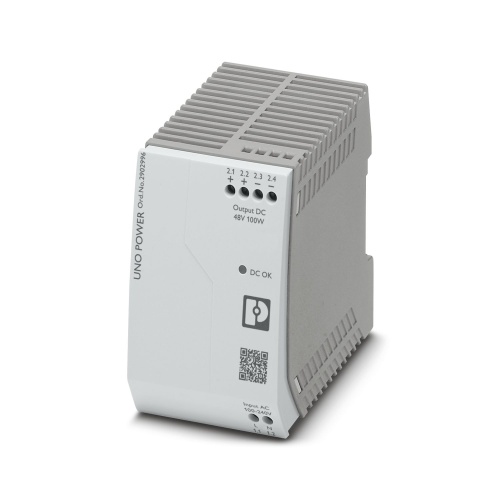

Phoenix Contact 2902996 Power supply UNO-PS/1AC/48DC/100W
Normally In Stock
Code: 36899
UNO-PS/1AC/48DC/100W Phoenix Contact UNO-PS/1AC/48DC/2. 48 volt 2.2 Amp Power Supply(Class 1 Div 2) and 85-264 Vac or 95-250 Vdc input voltage. Temperature range of -13 F to 158 F. Din rail mount Screw Connection. (3.54"H x 2.16"W x 2.4"D).
Condition: New
Usually ships Same Day or Next Day$122.70
Sale Price
$102.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2902996 A primary-switched UNO POWER power supply is available for DIN rail mounting and features a single-phase input with an output voltage of 48V DC at a maximum power rating of 100W.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
48 VDC
Power Supply Watts
100 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
2.1 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
UNO
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Outdoor installation, thanks to the wide temperature range from -25 °C ... +70 °C
More space in the control cabinet with up to 20 % higher power density
Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W
Flexible mounting by simply snapping onto the DIN rail
Downloads
Phoenix 2902996 CAD data International.dxfPhoenix 2902996 CAD data International.pdfPhoenix 2902996 CAD data International.stpPhoenix 2902996 Data Sheet English.pdfPhoenix 2902996 Manufacturers declaration English.pdfPhoenix 2902996 Manufacturers declaration International.pdfPhoenix 2902996 Manufacturers declaration International-2.pdfPhoenix 2902996 Package Slip International.pdfPhoenix 2902996 Product Information English.pdfPhoenix 2902996 Tender Text English.zipPhoenix 2902996 Various English.mp4Phoenix 2902996 Various English.pdfPhoenix 2902996 Various English.wmv
