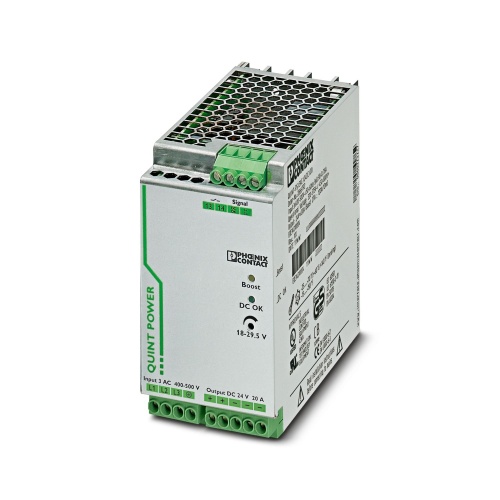

Phoenix Contact 2320924 Power supply, with protective coating QUINT-PS/3AC/24DC/20/CO
Normally In Stock
Code: 667
QUINT-PS/3AC/24DC/20/CO Phoenix Contact QUINT-PS/3AC/24DC/20/CO 24 volt 20 Amp power supply unit 3-phase 320 -575 Vac input. Din rail mount Screw Connection.
Condition: New
Usually ships within 7-14 days. Call for ship time.$1054.61
Sale Price
$878.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

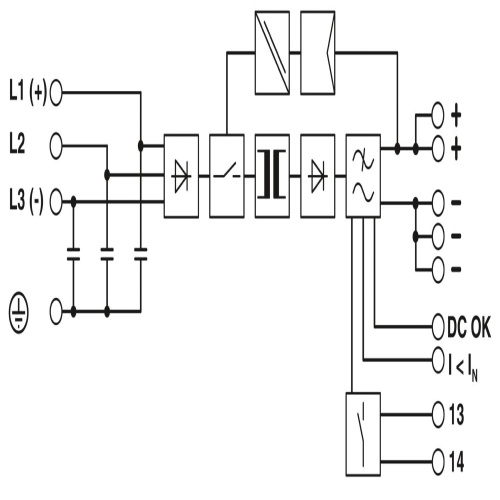

Phoenix Contact 2320924 The QUINT POWER power supply unit is a primary-switched design with a screw connection and features SFB Technology for selective fuse breaking. It accepts a 3-phase input and outputs 24V DC at a maximum current rating of 20A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
480 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
20 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
MINI
Power Supply Voltage Input Range
320 VAC - 575 VAC
Power Supply Amperage Output Range
16-20 Amp
Features
Preventive function monitoring
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
For superior system availability
Optimum protection with dip coating for 100 % humidity
Downloads
Phoenix 2320924 CAD data International.dxfPhoenix 2320924 CAD data International.pdfPhoenix 2320924 CAD data International.stpPhoenix 2320924 CAD Drawing.zipPhoenix 2320924 Manufacturers declaration English.pdfPhoenix 2320924 Manufacturers declaration International.pdfPhoenix 2320924 Manufacturers declaration International-2.pdfPhoenix 2320924 Manufacturers declaration International-3.pdfPhoenix 2320924 Spec Sheet.pdfPhoenix 2320924 Tender Text English.zipPhoenix 2320924 User Manual.pdfPhoenix 2320924 Various English.pdfPhoenix 2320924 Various English.wmv
