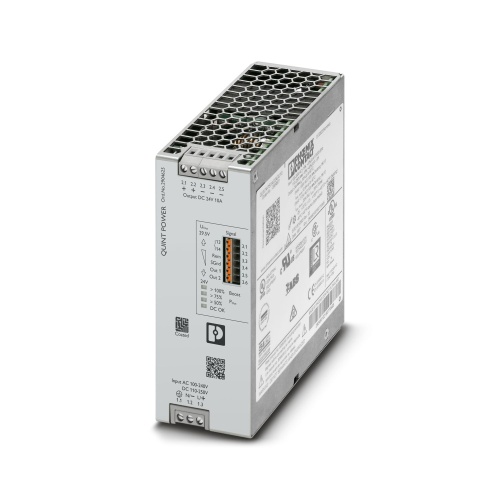

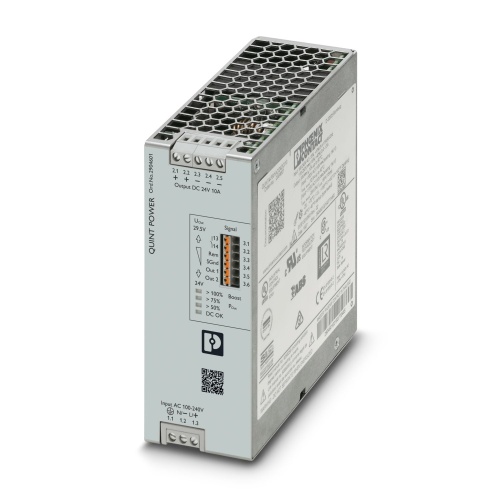

Phoenix Contact 2904625 Power supply QUINT4-PS/1AC/24DC/10/CO
Normally In Stock
Code: 68254
QUINT4-PS/1AC/24DC/10/CO Phoenix 2904625 Power supply 100 VAC - 240 VAC -15 % - +10 % 10 Amp 100 VAC - 240 VAC -15 % - +10 % Power Supplies and UPS
Condition: New
Usually ships within 7-14 days. Call for ship time.$400.98
Sale Price
$334.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904625 A primary-switched QUINT POWER power supply offers flexible output characteristics through its free choice of curve, features a selective fuse breaking system for added safety, and includes an NFC interface, all while providing protection from the elements thanks to a protective coating, accepting 1-phase input and delivering up to 24V DC at 10A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
100 VAC - 240 VAC
Features
High efficiency, long service life, and maximum immunity with integrated gas discharge tube
Preventive function monitoring indicates critical operating states before errors occur
Power reserves for easy system extension and starting up difficult loads
SFB Technology selectively trips standard miniature circuit breakers
Protective coating offers protection against dust, corrosive gases, and humidity
