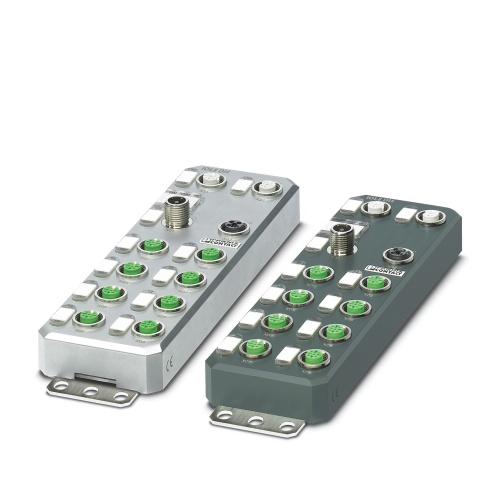

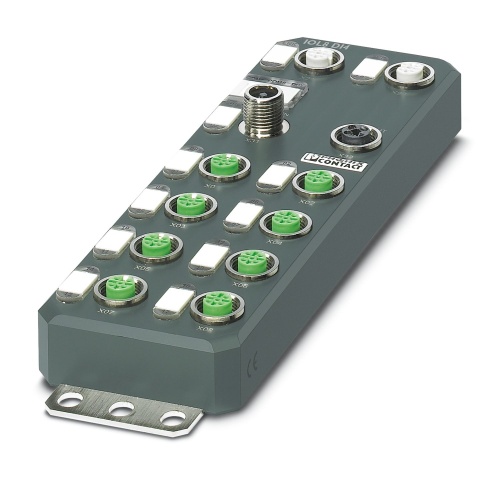

Phoenix Contact 2701513 Communication module AXL E PN IOL8 DI4 M12 6P
Normally In Stock
Code: 70892
AXL E PN IOL8 DI4 M12 6P Phoenix 2701513 I/O component Axioline Digital Input PROFINET 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, X01 ... X04 have double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

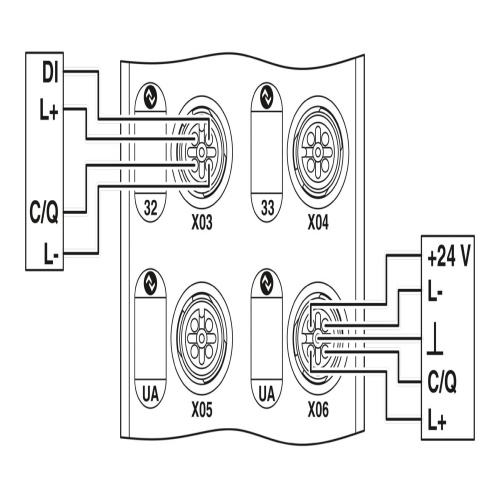

Phoenix Contact 2701513 A device with PROFINET and M12 connectors features IO-Link ports in two classes: Class A has four ports using the M12 connector with a three-conductor connection method, while Class B also uses an M12 connector for its four ports. Digital inputs are available at pin 2 on Class A ports, requiring a 24V DC supply and employing a three-conductor connection technology. The device's housing is made of plastic and has an IP65/IP67 degree of protection.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Network Interface
PROFINET
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
X01 ... X04 have double occupancy
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

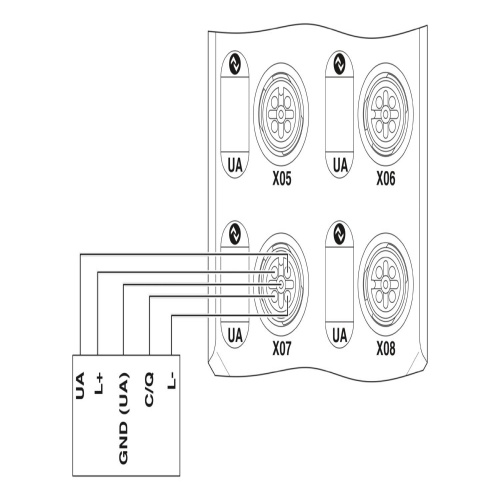

Connection of four IO-Link actuators with additional power supply
Transmission speed of 100 Mbps
Connection of four IO-Link devices with additional digital input
Connection to PROFINET network using M12 connectors (D-coded)
Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
IO-Link specification V1.1.2
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
