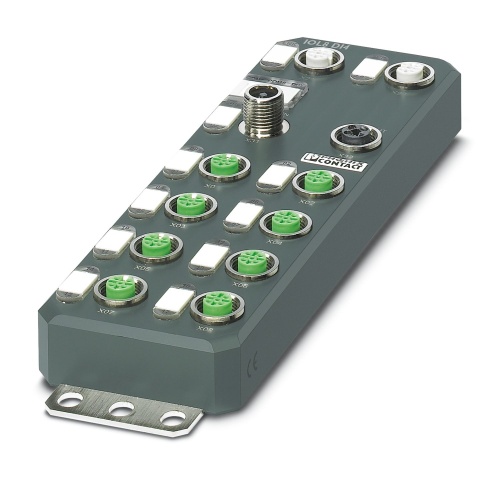

Phoenix Contact 2701524 Communication module AXL E EC IOL8 DI4 M12 6P
Normally In Stock
Code: 70912
AXL E EC IOL8 DI4 M12 6P Phoenix 2701524 I/O component Axioline Digital Input EtherCAT 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, X01 ... X04 have double occupancy PLC & IO
Condition: New
IN STOCK. SHIPS SAME DAY IF ORDERED BEFORE 12:00PM MST$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

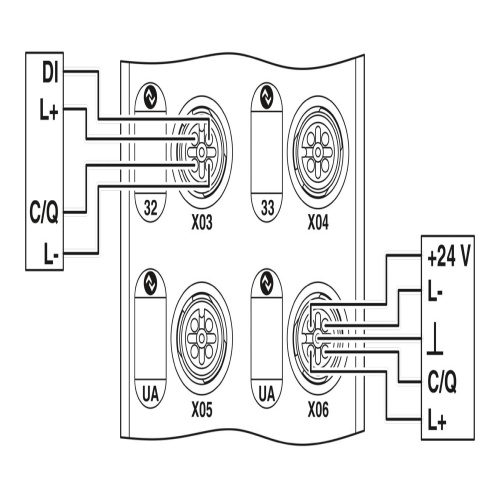

Phoenix Contact 2701524 The specified connector and port types include Class A and Class B connections via M12 connectors with a 3-conductor configuration, featuring IO-Link ports for both. The digital inputs on Class A ports are accessible at pin 2, utilizing a 24 V DC connection technology.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
X01 ... X04 have double occupancy
PLC & IO Network Interface
EtherCAT
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

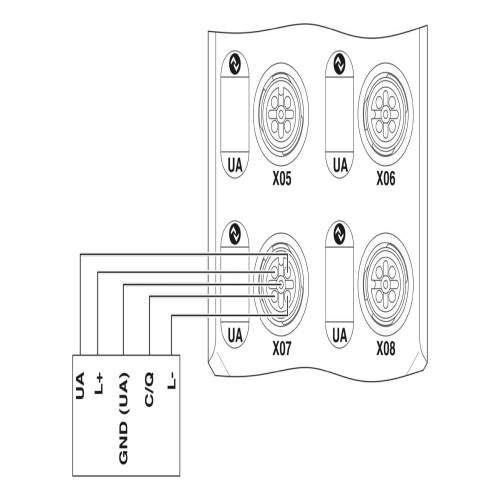

Connection of four IO-Link actuators with additional power supply
Transmission speed of 100 Mbps
Connection of four IO-Link devices with additional digital input
Connection to EtherCAT® network using M12 connectors (D-coded)
Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
IO-Link specification V1.1.2
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701524 Application Note English-3.pdfPhoenix 2701524 Application Note English-4.pdfPhoenix 2701524 CAD data International.dxfPhoenix 2701524 CAD data International.stpPhoenix 2701524 Data Sheet English.pdfPhoenix 2701524 Device Description English.zipPhoenix 2701524 Firmware English.zipPhoenix 2701524 Manual English-2.pdfPhoenix 2701524 Manual English.pdfPhoenix 2701524 Manufacturers declaration English.pdfPhoenix 2701524 Manufacturers declaration International.pdfPhoenix 2701524 Package Slip International.pdfPhoenix 2701524 Quick Start Guide English.pdfPhoenix 2701524 Tender Text English.zipPhoenix 2701524 Various English.pdf
