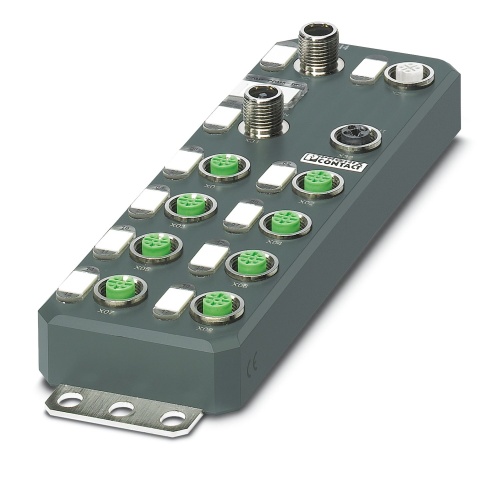

Phoenix Contact 2701503 Communication module AXL E PB IOL8 DI4 M12 6P
Normally In Stock
Code: 70994
AXL E PB IOL8 DI4 M12 6P Phoenix 2701503 I/O component Axioline Digital Input,Bus PROFIBUS DP 9.6 kbps ... 12 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, X01 ... X04 have double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701503 The Axioline E device has multiple connection options including PROFIBUS DP and M12 connectors with IO-Link ports, featuring Class A and Class B configurations each utilizing a 3-conductor connection method, while Digital inputs at pin 2 are powered by 24V DC. The device also features a plastic housing providing IP65/IP67 degree of protection.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Network Interface
PROFIBUS DP
PLC & IO Transmission Speed
9.6 kbps ... 12 Mbps
PLC & IO Connection Method
X01 ... X04 have double occupancy
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

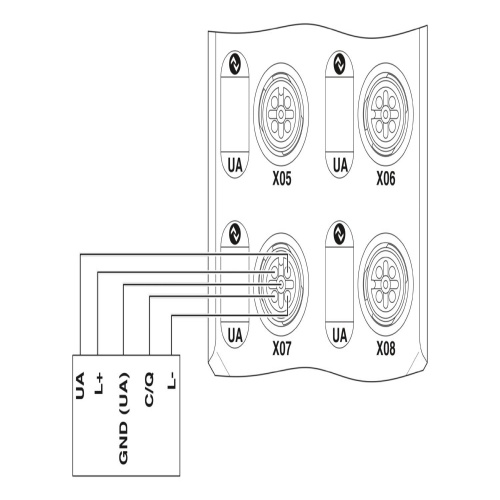

Connection of four IO-Link actuators with additional power supply
Baud rate of up to 12 Mbaud (automatic baud rate detection)

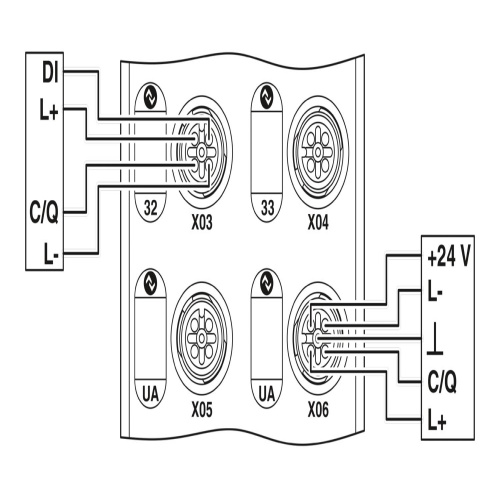

Connection of four IO-Link devices with additional digital input
Connection to PROFIBUS DP using M12 connectors (B-coded)
Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
IO-Link specification V1.1.2
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701503 Application Note English-2.pdfPhoenix 2701503 Application Note English.pdfPhoenix 2701503 CAD data International.dxfPhoenix 2701503 CAD data International.pdfPhoenix 2701503 CAD data International.stpPhoenix 2701503 Data Sheet English.pdfPhoenix 2701503 Device Description English.zipPhoenix 2701503 Manual English-2.pdfPhoenix 2701503 Manual English.pdfPhoenix 2701503 Manufacturers declaration English.pdfPhoenix 2701503 Manufacturers declaration International.pdfPhoenix 2701503 Package Slip International-2.pdfPhoenix 2701503 Package Slip International.pdfPhoenix 2701503 Tender Text English.zipPhoenix 2701503 Various English.pdf
