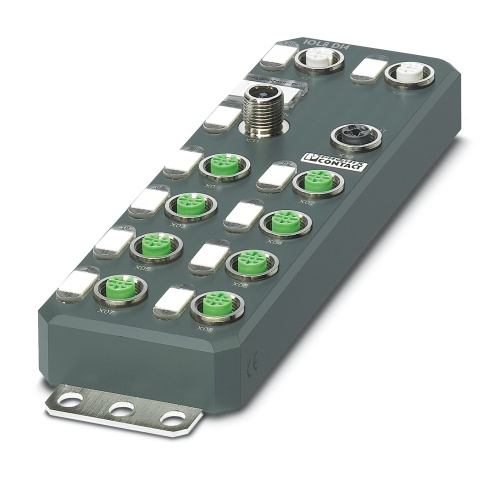

Phoenix Contact 2701496 Communication module AXL E EIP IOL8 DI4 M12 6P
Normally In Stock
Code: 71153
AXL E EIP IOL8 DI4 M12 6P Phoenix 2701496 I/O component Axioline Digital Input EtherNet/IP 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, X01 ... X04 have double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701496 The specified product features an array of connectivity options including Axioline E, EtherNet/IP, and M12 connector interfaces, with Class A ports utilizing a M12 connector for three-conductor connections, IO-Link ports also connected via the same method, and available digital inputs at pin 2. The product housing is made of plastic, offering an IP65/IP67 degree of protection and powered by a 24V DC supply.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
X01 ... X04 have double occupancy
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Network Interface
EtherNet-IP
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features

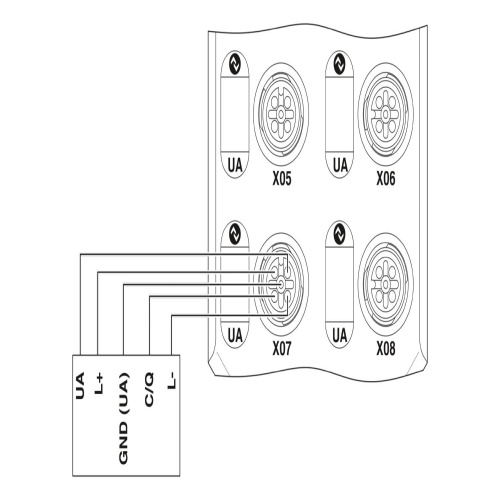

Connection of four IO-Link actuators with additional power supply
Transmission speed of 10 Mbps and 100 Mbps

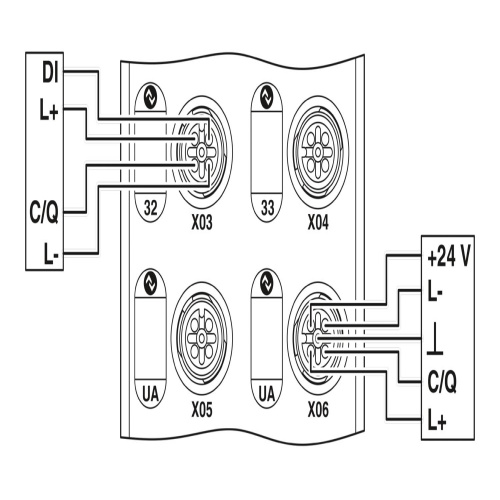

Connection of four IO-Link devices with additional digital input
Connection to EtherNet/IP™ network using M12 connectors (D-coded)
Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
IO-Link specification V1.1.2
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701496 Application Note English-2.pdfPhoenix 2701496 Application Note English-3.pdfPhoenix 2701496 Application Note English.pdfPhoenix 2701496 CAD data International.dxfPhoenix 2701496 CAD data International.pdfPhoenix 2701496 CAD data International.stpPhoenix 2701496 Data Sheet English.pdfPhoenix 2701496 Device Description English.zipPhoenix 2701496 Manual English-2.pdfPhoenix 2701496 Manual English.pdfPhoenix 2701496 Manufacturers declaration English.pdfPhoenix 2701496 Manufacturers declaration International.pdfPhoenix 2701496 Package Slip International-2.pdfPhoenix 2701496 Package Slip International.pdfPhoenix 2701496 Quick Start Guide English.pdfPhoenix 2701496 Software English.exePhoenix 2701496 Software English.zipPhoenix 2701496 Tender Text English.zipPhoenix 2701496 Various English.pdf
