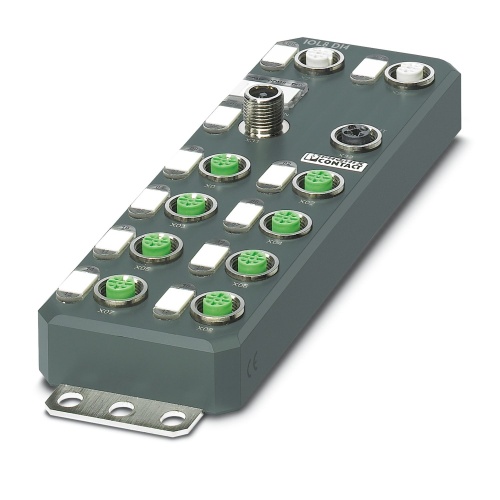

Phoenix Contact 2701536 Communication module AXL E ETH IOL8 DI4 M12 6P
Normally In Stock
Code: 71283
AXL E ETH IOL8 DI4 M12 6P Phoenix 2701536 I/O component Axioline Digital Input Ethernet 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, X01 ... X04 have double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

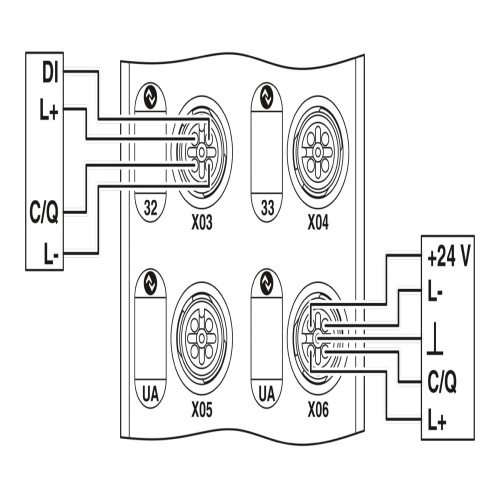

Phoenix Contact 2701536 The device features various connectors and ports including Axioline E Ethernet, M12 connector, and IO-Link ports. For Class A connections, it uses a 3-conductor M12 connector with 4 available inputs, while for Class B connections it also employs a 3-conductor M12 connector with 4 available inputs. Additionally, digital inputs are present at pin 2, operating at 24V DC and utilizing a 3-conductor connection technology, housed in a plastic casing that provides IP65/IP67 degree of protection.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
X01 ... X04 have double occupancy
PLC & IO Network Interface
Ethernet
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Connection of IO-Link ports using M12connectors (A-coded, 5-pos.)
Connection of four IO-Link devices with additional digital input

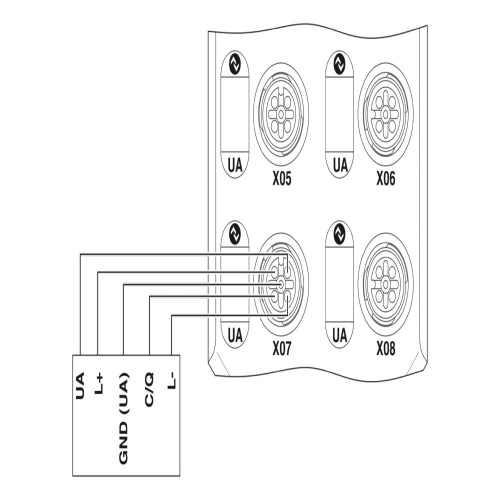

Connection of four IO-Link actuators with additional power supply
Connection to Ethernet network using M12 connectors (D-coded)
IO-Link specification V1.1.2
Residual storage of the IO-Link port configuration with firmware 2.1.3 or later
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701536 Application Note English-2.pdfPhoenix 2701536 Application Note English-3.pdfPhoenix 2701536 Application Note English-4.pdfPhoenix 2701536 Application Note English.pdfPhoenix 2701536 CAD data International.dxfPhoenix 2701536 CAD data International.pdfPhoenix 2701536 CAD data International.stpPhoenix 2701536 Data Sheet English.pdfPhoenix 2701536 Firmware English.zipPhoenix 2701536 Manual English-2.pdfPhoenix 2701536 Manual English.pdfPhoenix 2701536 Manufacturers declaration English.pdfPhoenix 2701536 Manufacturers declaration International.pdfPhoenix 2701536 Package Slip International-2.pdfPhoenix 2701536 Package Slip International.pdfPhoenix 2701536 Software English.exePhoenix 2701536 Software English.zipPhoenix 2701536 Tender Text English.zipPhoenix 2701536 Various English.pdf
